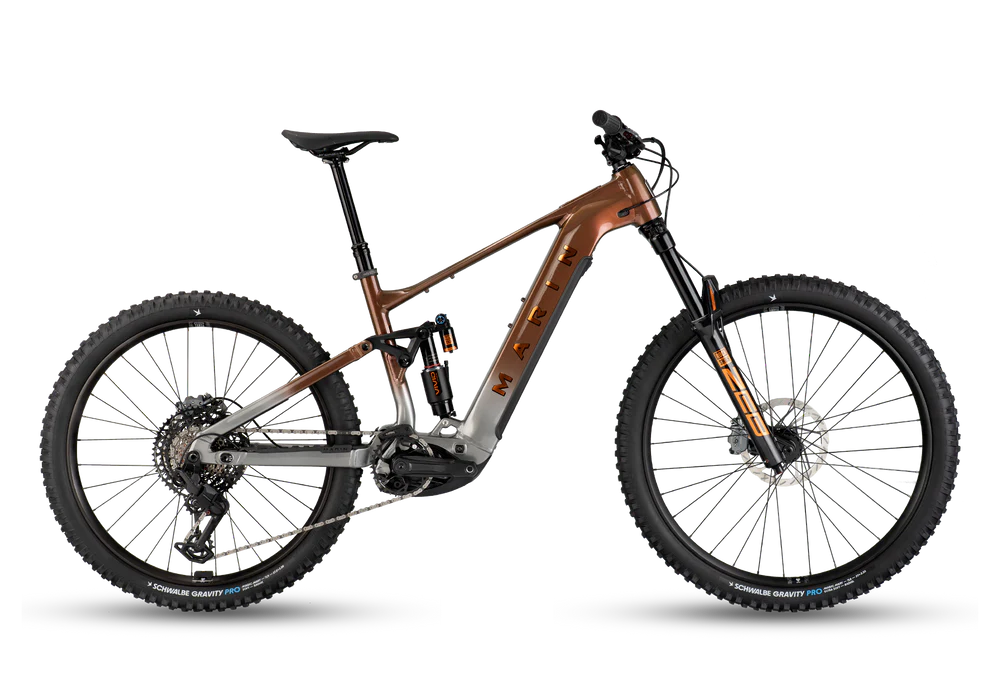

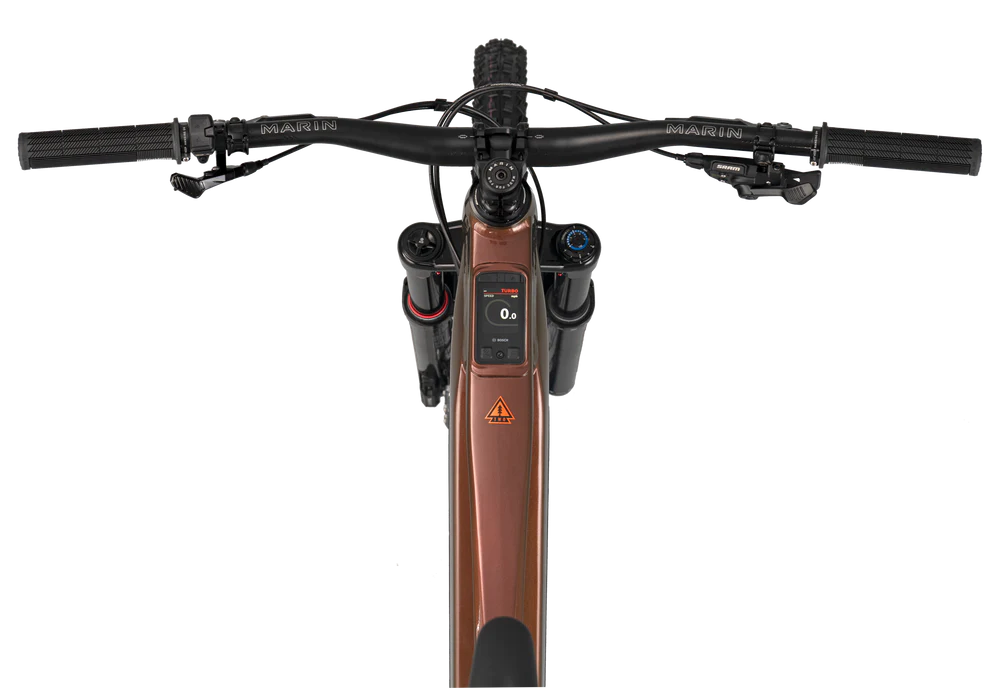

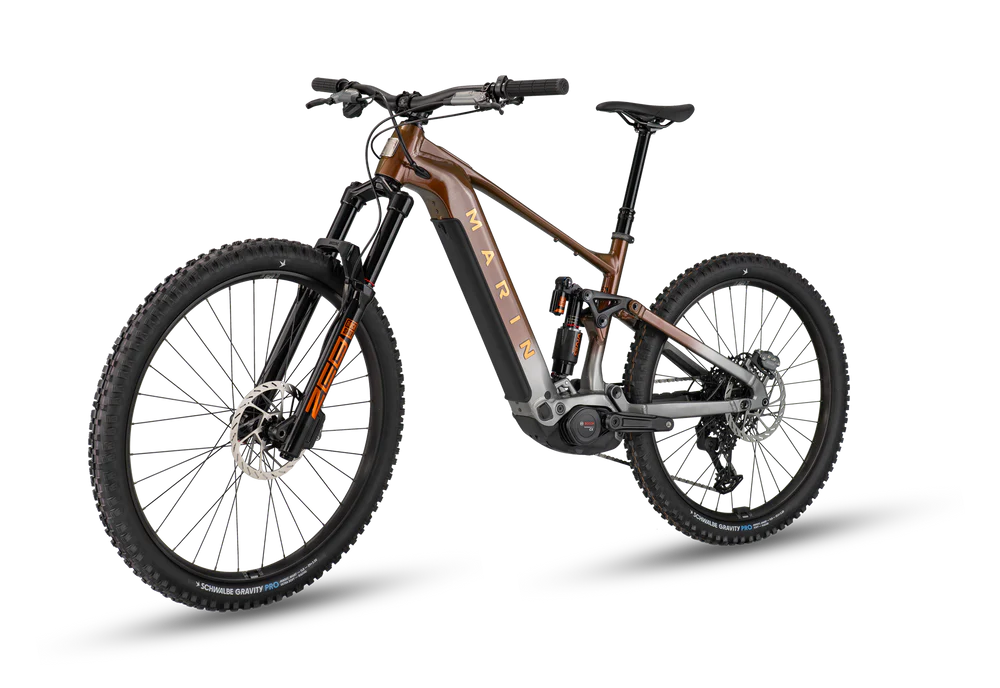

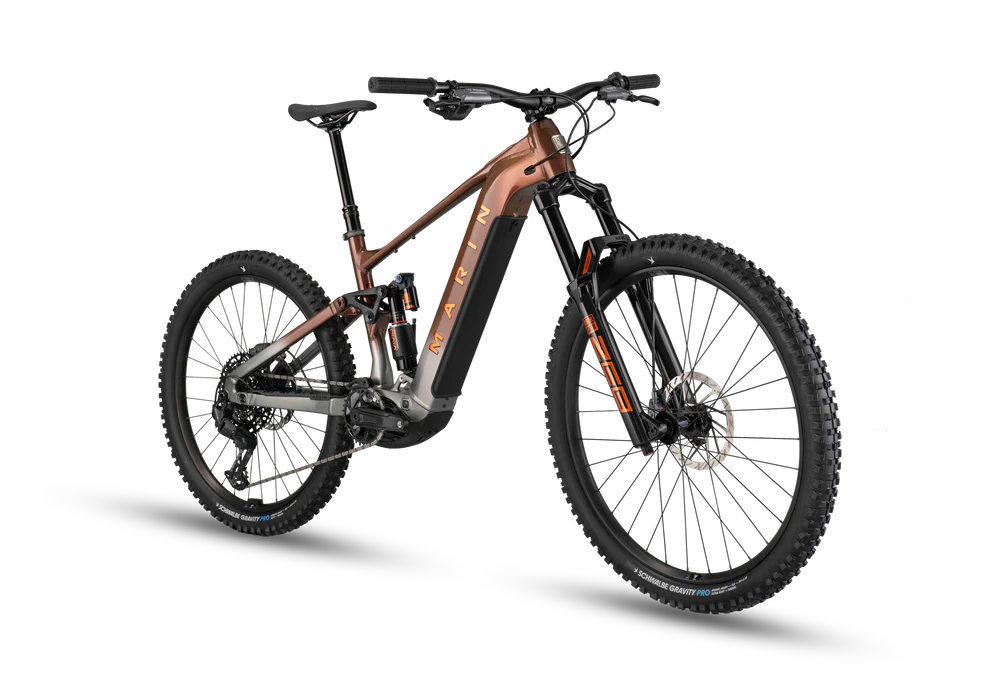

The 2-in-1 color Kiox top tube monitor allows you to keep track of your statistics. The ultra-adjustable RockShox Zeb and Vivid Select+ shocks work with SRAM’s crisp-shifting Eagle Transmission. Maven Bronze brakes provide a light feel but strong stopping power. The Alpine Trail E2 is the eMTB’s checkmate.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
App
Bosch eBike Flow App
Range
115-55 miles/25-90 km
Display
Bosch Kiox 400 Top Tube Display
Switch
Bosch BRC3300 Bluetooth Remote 22.2 mm Clamp
Battery
PT800 Horizontal
Frame
All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
RockShox Zeb Select +, 170 mm Travel, 29″, 110×15 mm Maxle Stealth, 44mm Offset
Rear Suspension
RockShox Vivid Air Select +, 205×65, 30xM8 Lower Hardware, Custom Tune
Rim
WTB Sportterra Tough i30 Wheelset
Hub Rear
WTB Sportterra Tough i30 Wheelset
Hub Front
WTB Sportterra Tough i30 Wheelset
Spokes
WTB Sportterra Tough i30 Wheelset
Tires
Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29×2.5″ Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5×2.5″
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
SRAM Eagle 70
Shift Lever
SRAM Eagle 90, MMX Clamp
Crankset
Marin Forged eMTB Cranks, 34T, 150 mm
Chain
SRAM Eagle 70 T-Type
Cassette
SRAM XG 1270, T-Type, 10-52T
Brakes Front
SRAM Maven Bronze, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Rear
SRAM Maven Bronze, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Levers
SRAM Maven Bronze, MMX Clamps
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem
New Marin CNC, 35 mm Length, 35 mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
X-Fusion Manic HC, Alloy Lever, Travel Adjust 10mm increments, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle
Marin Short Nose
