The “Bear Box” downtube storage has a 34.9mm seat post for added strength and compatibility with the newest dropper posts, along with a zipped nylon bag to hold trail necessities.

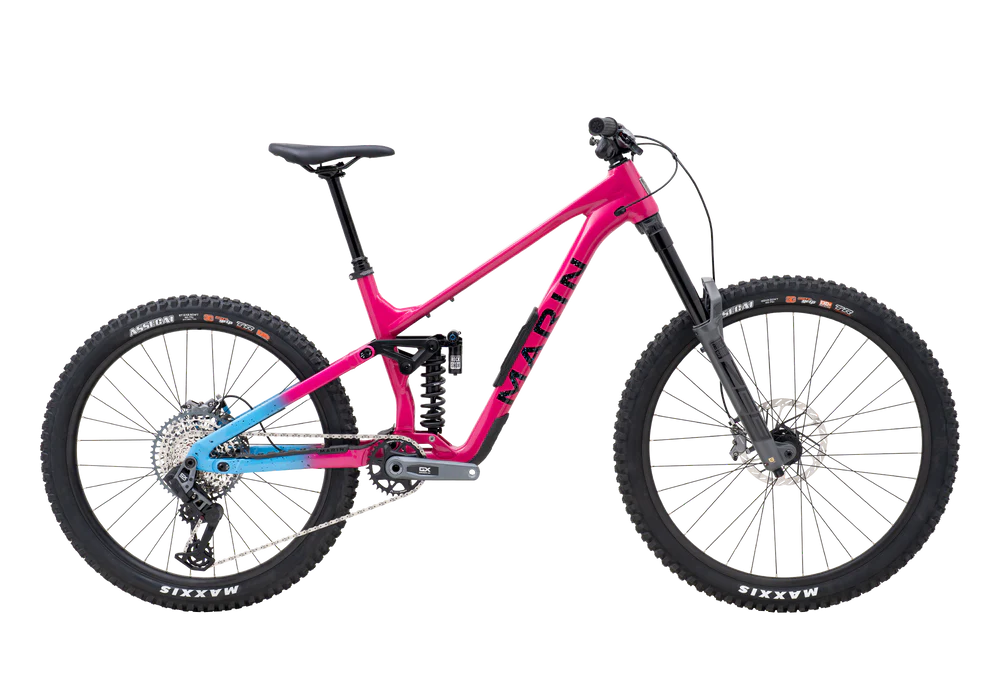

Here at Marin, “XR” equals “Xtra Rad,” and we went all out with the XR AXS take on the Alpine Trail. We upgraded the bike’s drivetrain with SRAM’s GX Eagle AXS wireless 12-speed drivetrain in addition to adding Ultimate-level RockShox suspension. With their 200mm rotors and 4-piston calipers, SRAM’s Code Bronze brakes offer strong stopping power.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Frame
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front Suspension
RockShox Zeb Ultimate, 170mm Travel, 29″, 110x15mm Maxle Stealth, 44mm Offset
Rear Suspension
RockShox Super Deluxe Coil Ultimate, 205×65, 30xM8 Lower Hardware, Custom Tune, S/M = 350 lbs, L/XL = 450 lbs
Rim
Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear
Formula, DCL-3482, 148×12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Hub Front
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Spokes
14g Black Stainless Steel
Tires
Maxxis Assegai MAXX GRIP, Front 29×2.5 EXO+, Rear 27.5×2.5″ DoubleDown, Tubeless compatible
Derailleur Rear
SRAM GX Eagle AXS T-Type
Shift Lever
SRAM AXS POD MMX
Crankset
SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket
SRAM DUB MTB 73
Chain
SRAM GX Eagle T-Type
Cassette
SRAM GX 1275 T-Type 10-52T
Brakes Front
SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brakes Rear
SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake Levers
SRAM Code Bronze Hydraulic Disc
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5º Up, 8º Back
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle
Marin Speed Concept
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Downtube Storage Bag
