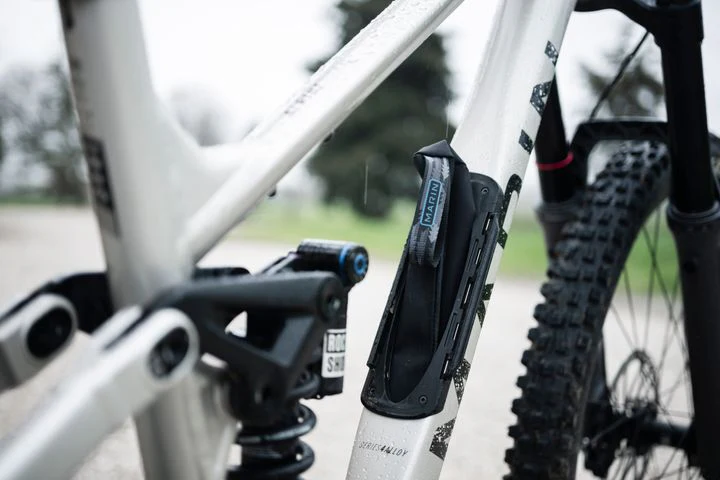

The “Bear Box” downtube storage has a 34.9mm seat post for added strength and compatibility with the newest dropper posts, along with a zipped nylon bag to hold trail necessities.
“XR” stands for “Xtra Rad” at Marin, and like the XR models that preceded the new Alpine Trail, we designed a model for the more discerning rider. We focused our efforts on creating a bike with high performance RockShox Ultimate-level suspension, an SRAM GX Eagle Lunar 12-speed transmission, and DB8 4-piston brakes – all of which assist the rider level up while remaining within budget. Don’t forget the Maxxis rubber, as well as our own CNC machined 35mm stem and matching Trail Bar.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Frame
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front Suspension
RockShox Zeb Ultimate, 170mm Travel, 29″, 110x15mm Maxle Stealth, 44mm Offset
Rear Suspension
RockShox Super Deluxe Coil Ultimate, 205×65, 30xM8 Lower Hardware, Custom Tune, S/M = 350 lbs, L/XL = 450 lbs
Rim
Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear
Formula, DCL-3482, 148×12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Hub Front
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Spokes
14g Black Stainless Steel
Tires
Maxxis Assegai MAXX GRIP, Front 29×2.5 EXO+, Rear 27.5×2.5″ DoubleDown, Tubeless compatible
Derailleur Rear
SRAM GX Eagle Lunar
Shift Lever
SRAM GX Eagle Lunar MMX Mount
Crankset
SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket
SRAM DUB MTB 73
Chain
SRAM NX Eagle
Cassette
SRAM XG 1275 Eagle Cassette 10-52T
Brakes Front
SRAM DB8 4-Piston Hydraulic Disc , HSC 200mm Rotor
Brakes Rear
SRAM DB8 4-Piston Hydraulic Disc , HSC 180mm Rotor
Brake Levers
SRAM DB8 Hydraulic Disc
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle
Marin Speed Concept
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
