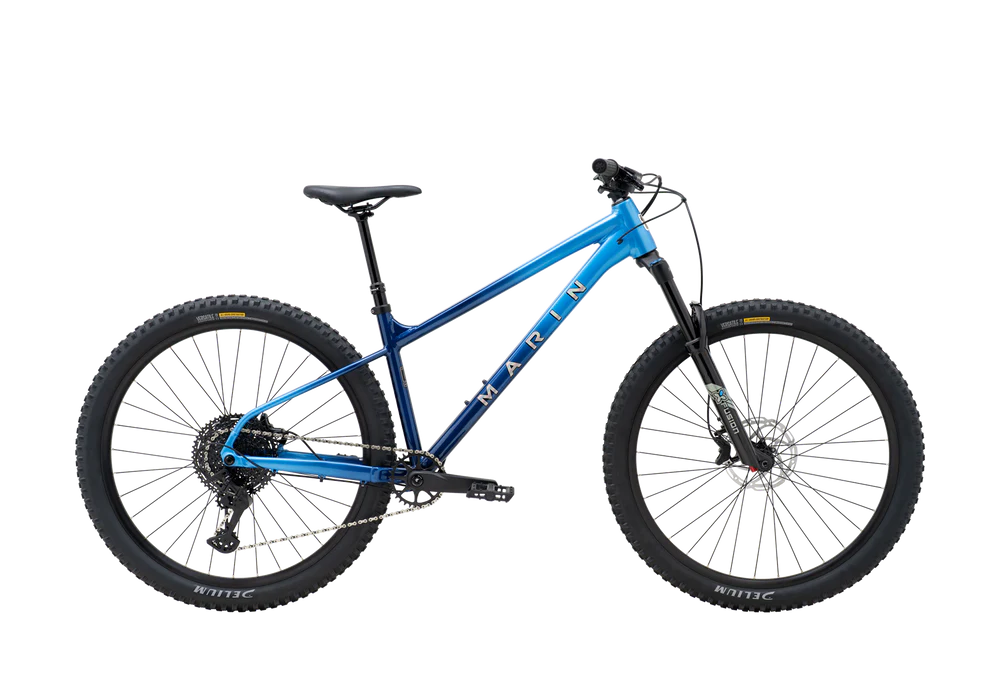

We’ve packed in 29″ wheels, a TranzX dropper post, an X-Fusion suspension fork, Tektro four piston brakes, Vee Tire rubber, and tons of fantastic Marin equipment to produce a bike you’ll want to ride but won’t break the bank. Dirt jump DNA with 29″” wheels for maximum speed and rollover.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
Front Suspension
X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Rim
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Hub Rear
Shimano HF-MT400B, 148×12, Disc, Standard Freehub Body
Hub Front
Shimano HF-MT410B, 110x15mm, 32H
Spokes
14g Black Stainless Steel
Tires
Delium Vesatile, All-Around Construction, 2.5″, Wire-Bead Tubeless
Derailleur Rear
Shimano CUES U6000GS, w/Clutch
Shift Lever
Shimano CUES 11-speed
Crankset
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC LG
Cassette
Shimano CUES CSLG400, 11-Speed, 11-51T
Brakes Front
Tektro M535 4-Piston Hydraulic, 180mm Rotor
Brakes Rear
Tektro M535 4-Piston Hydraulic, 180mm Rotor
Brake Levers
Tektro M535
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”
Seatpost
TranzX, YSP18, 1x Remote, Size S 120mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm
Saddle
Marin Speed Concept
Pedals
Marin MTB Plastic
