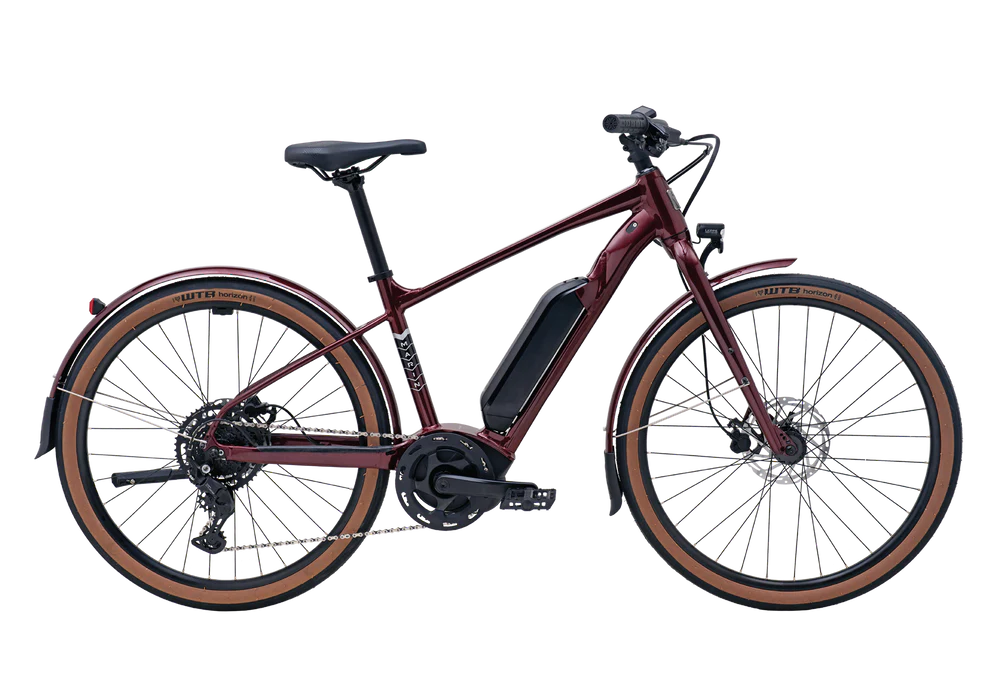

We’ve made the E1 accessible in both standard and step-through frame styles to ensure that you’re comfortable exploring on a Sausalito.
The E1 now uses the new Bosch Active + ecosystem, which has a larger 545wh battery for more range and exploration.
We’ve matched it with wide-range gearing and robust hydraulic disc brakes to handle any situations and weather.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Range
25-93 miles/40-150km
Battery
Bosch Power Pack 545, 545Wh
Motor
Bosch Active Plus, 250W, 50Nm, Class 1 (North America – 20mph/32Kph, EU – 25Kph) (Canada Class 1 32km/h)
Fork
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Forged Alloy, Disc Specific, 32H
Hub Front
Forged Alloy, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
WTB Horizon, 650Bx47, Wire Bead
Derailleur Rear
Shimano CUES 9-Speed
Shift Lever
Shimano CUES 9-Speed
Crankset
Forged Aluminum w/ 38T Steel Chairing
Chain
KMC E11S
Cassette
Shimano CUES 9-Speed 11-46T
Brakes Front
Tektro HD-M275 Hydraulic, 180mm Rotor
Brakes Rear
Tektro HD-M275 Hydraulic, 180mm Rotor
Brake Levers
Tektro Hydraulic
Handlebar
Marin Urban Alloy, 31.8mm Clamp
Stem
Marin Alloy
Grips
Marin County
Headset
FSA No. 57E
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin City Plush
Pedals
Flat
Extras
Rear Mount Alloy Kickstand
