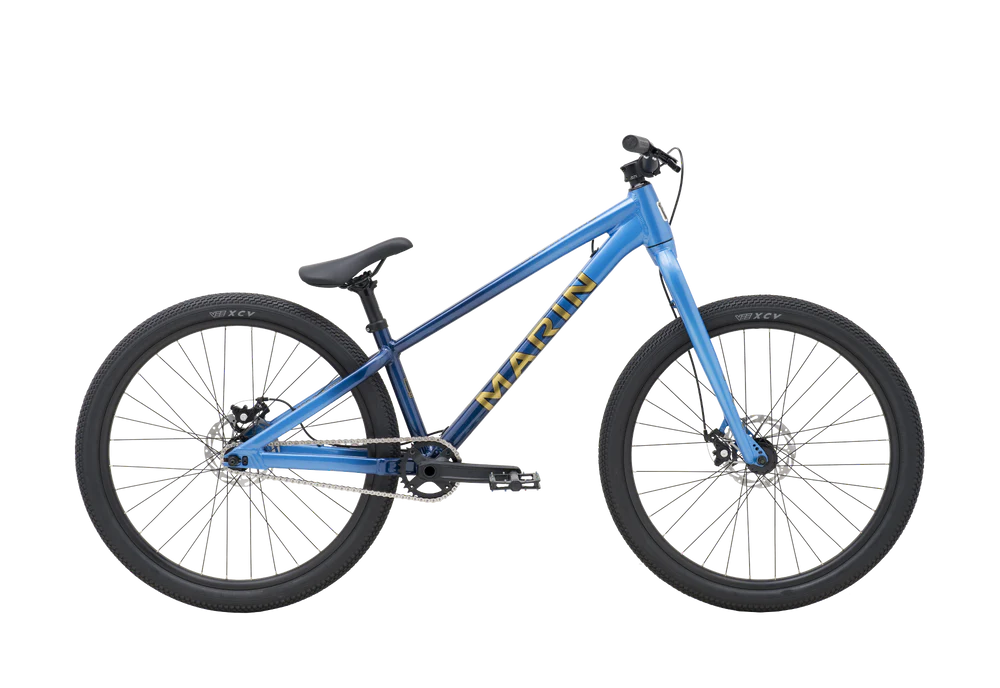

The Series 3 6061 aluminum frame is designed to withstand harsh blows while being rigid enough to accelerate quickly. Short chainstays make manuals easier, and small things like ambidextrous cable routing allow you to use your brake on either side of the bars. There’s a suspension-corrected CrMo fork to keep the angles straight, front and rear Tektro disc brakes, Vee Tire rubber, and a slew of trusted Marin components. Best of all, it comes in two frame sizes: regular and long. marin mountain bikes.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Fork
Marin Series 2 Cro-Mo 26″ Fork, Suspension Corrected, 100x9mm Drop Outs
Frame
Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Front Suspension
Marin Series 2 Cro-Mo 26″ Fork, Suspension Corrected, 100x9mm Drop Outs
Rim
Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hub Rear
Forged Alloy, 135x1mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Hub Front
Forged Alloy, Bolt On 3/8th Axle, 100mm Spacing
Spokes
14g Black Stainless Steel
Tires
Vee Tire, XCV 26×2.25”, LSG Compound, Wire Bead
Crankset
Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, 170mm Crank Length
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC HL-1
Cassette
14T Single Speed Cog
Brakes Front
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brakes Rear
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers
Tektro CL-330TS Alloy
Handlebar
Marin Riser, 661 Double Butted Aluminum, 38mm Rise, 75mm Width, 4º Up, 9º Back
Stem
Marin 3D Forged Alloy, 4mm
Grips
Marin MTN, Closed End
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin DJ Saddle
Pedals
Alloy Platform
Extras
All New Marin Chain Tension Device
