The maximum aided speed is 20 mph in the United States and New Zealand, and 25 kph in other worldwide markets, and the various settings are selected using the controller, which has a tidy integrated display next to the left grip.
When paired with center motors, Shimano’s CUES 10-speed transmission provides a wide range and industry-leading reliability, while hydraulic disc brakes with big rotors let you to stop on a dime. When you come to a halt, push the dropper post lever to ensure that both feet are safely on the ground.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
App
Bosch eBike Flow App
Range
25-93 miles/40-150km

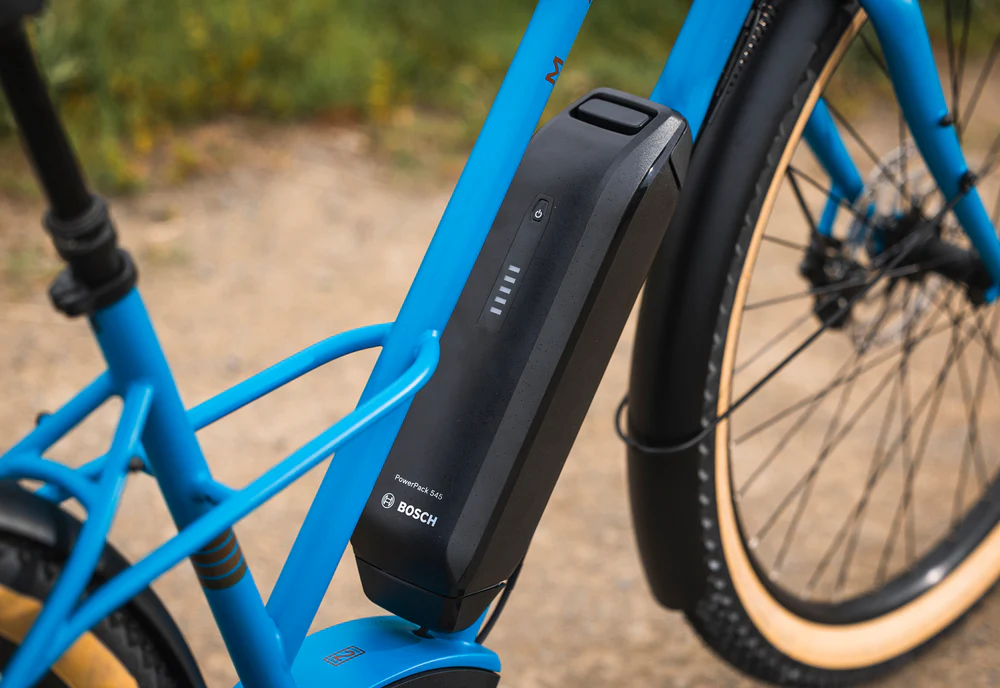

Battery
Bosch Power Pack 545, 545Wh
Motor
Bosch Active Plus, 250W, 50Nm, Class 1 (North America – 20mph/32Kph, EU – 25Kph)
Fork
CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
Frame
Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Forged Alloy, Disc Specific, 32H
Hub Front
Forged Alloy, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co., GPVee, 27.5×2.35″, Wire Bead, Puncture Protection, Mixed Terrain Ready
Derailleur Rear
Shimano CUES 10-Speed
Shift Lever
Shimano CUES 10-Speed
Crankset
Forged Aluminum w/ 38T Steel Chairing
Chain
KMC E11S
Cassette
Shimano CUES 10-Speed 11-48T
Brakes Front
Shimano MT201 Hydraulic, 180mm Rotor
Brakes Rear
Shimano MT201 Hydraulic, 180mm Rotor
Brake Levers
Shimano MT201 Hydraulic
Handlebar
Marin Urban Alloy, 31.8mm Clamp
Stem
Marin Alloy
Grips
Marin County
Headset
FSA Orbit CE No.8B

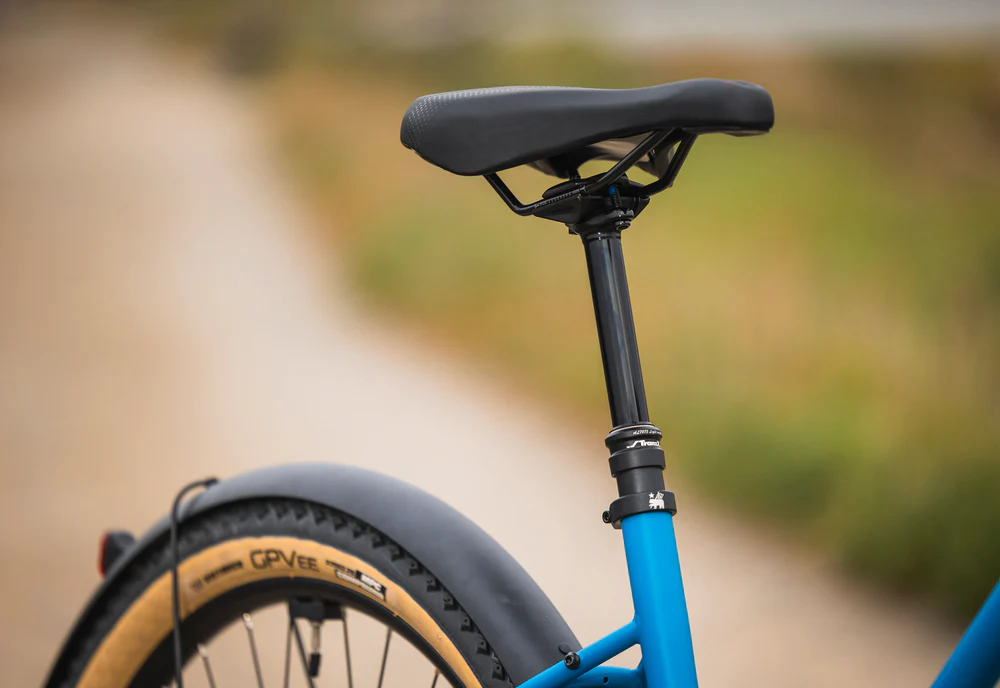

Seatpost
TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel,
Saddle
Marin City Plush
Pedals
Nylon Platform
