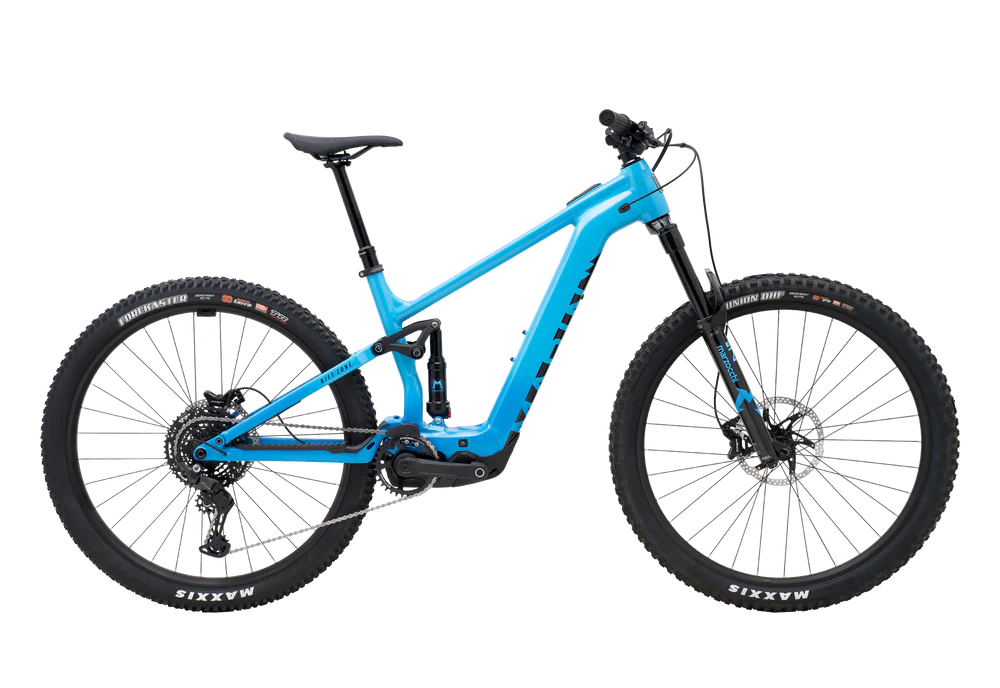

The Rift Zone EL bikes, made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, provide a notably fun ride with power delivery that is so natural you could forget you’re riding an electric bicycle. With all of the benefits without the size, the Rift Zone EL is the ideal platform for people who don’t need the full range and power output of more typical eMTBs.
The Rift Zone EL1 is intelligently equipped with air-sprung Marzozzchi Bomber suspension, Shimano’s sturdy and smooth-shifting CUES 10-speed gearbox, and powerful TRP Slate EVO 4-piston disc brakes.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
App
Bosch eBike Flow App
Range
15-55 miles/25-90km
Display
Bosch BRC3100 Systems Controller
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
Bosch 400 Wh Internal (Optional PowerMore 250wh external battery using PowerMore 150mm cable EB12.120.036)
Motor
Bosch Performance Line SX, 600W, 55Nm
Frame
All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
Marzocchi Bomber Z1 150mm Travel, 29, 110×15 Kabolt Thru Axle, 44mm Offset
Rear Suspension
Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rim
Marin Aluminum Double Wall, 29″ Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear
Shimano FHTC500, 148×12 Thru Axle, Mircospline, 32H, Centerlock
Hub Front
Shimano, 110×10 Thru Axle, 32H, Centerlock
Spokes
14g Black Stainless Steel
Tires
Front: Maxxis Minion DHF, 29×2.5″ MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forekaster 29×2.4″, Tubeless Ready MAXX TERRA EXO+
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever
Shimano CUES SL-U6000-10R, 10-Speed
Crankset
e*thirteen e*spec Plus, 160mm Length, 34T
Chain
Shimano LG500
Cassette
Shimano CS-LG300-10, 11-48T
Brakes Front
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brakes Rear
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brake Levers
TRP Slate EVO, I-Spec EV Compatible
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
Saddle
Marin Speed Concept
Pedals
Marin MTB Plastic
