The “Bear Box” downtube storage system contains a zippered nylon bag for trail supplies, and the 34.9mm seatpost adds strength and is compatible with the latest dropper posts.
While the Alpine Trail 1 is the starting point for the three-model portfolio, we made no compromises on specifications. High-performance Fox suspension keeps you in control at all times, while a Shimano Deore 12-speed gearbox transfers power to the wheels. TRP’s Slate Evo 4-piston brakes use 203mm rotors to keep speed under control in a powerful, fade-free way.
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Fork

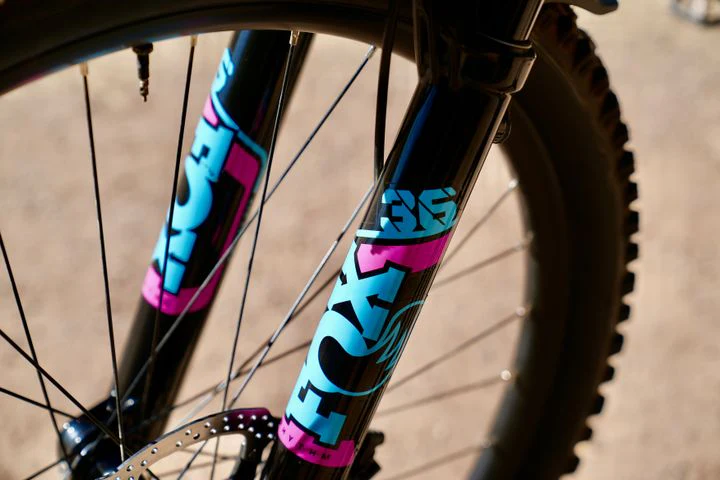

Fox 36 Rhythm, 170mm Travel, 29″, Grip Damper, 110×10 Kabolt, 44mm Offset
Frame
All New Series 4 6061 Aluminum Frame, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rear Suspension

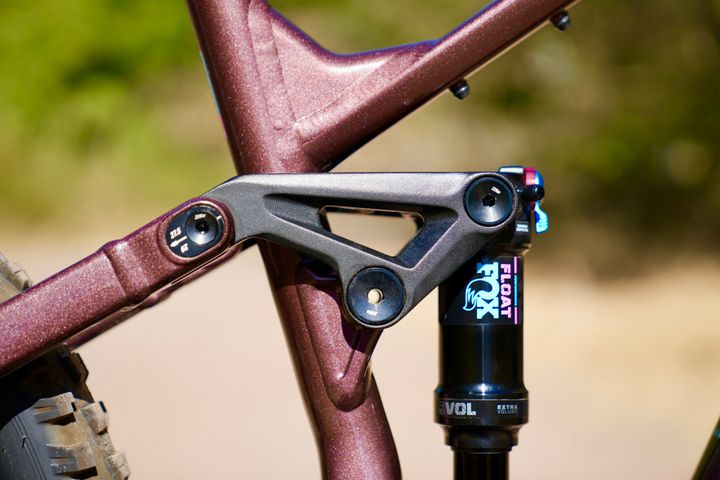

Fox Float Performance, 205×65, 30xM8 Lower Hardware, Custom Tune
Rim
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear
Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
Hub Front
Shimano HF-MT410B, 110x15mm, Centerlock
Spokes
14g Black Stainless Steel
Tires
Vee Tire Flow Snap, 29×2.6″ Front 27.5×2.5″ Rear, Top 40 Compound, Enduro Core, 72 TPI, Tubeless Compatible
Derailleur Rear
Shimano Deore, 12-Speed, SGS
Shift Lever
Shimano Deore, 12-Speed, SL-6100-IR
Crankset
FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Bottom Bracket
Mego EXO 73mm BSA
Chain
KMC X-12 Silver and Black
Cassette
Shimano, Deore M6100 12-Speed, 10-51T
Brakes Front
TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor
Brakes Rear
TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor
Brake Levers
TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle
Marin Speed Concept
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head | Downtube Storage Bag
