Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
Frame
All New Series 4 6061 Aluminum, 29″ Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Front Suspension
Fox 34 StepCast Performance, 120mm Travel, Alloy Tapered Steerer, Air Spring, 110x15mm Boost Spacing, Kabolt Thru-Axle, 44mm Offset
Rim
Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Specific, Tubeless Compatible
Hub Rear
Forged Aluminum, 148x12mm, Disc Specific, 32H
Hub Front
Shimano, 110x15mm, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
Maxxis Rekon Race, 29×2.35″, Folding Bead, Tubeless Ready
Derailleur Rear
Shimano XT, RDM8100, 12-Speed
Shift Lever
Shimano SLX, SLM7100, 12-Speed
Crankset
FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Bottom Bracket
FSA MegaExo 73mm BSA
Chain
KMC X12
Cassette
SunRace, 12-Speed, 11-51T
Brakes Front
Shimano Deore, BR-MT4100, 180mm Rotor

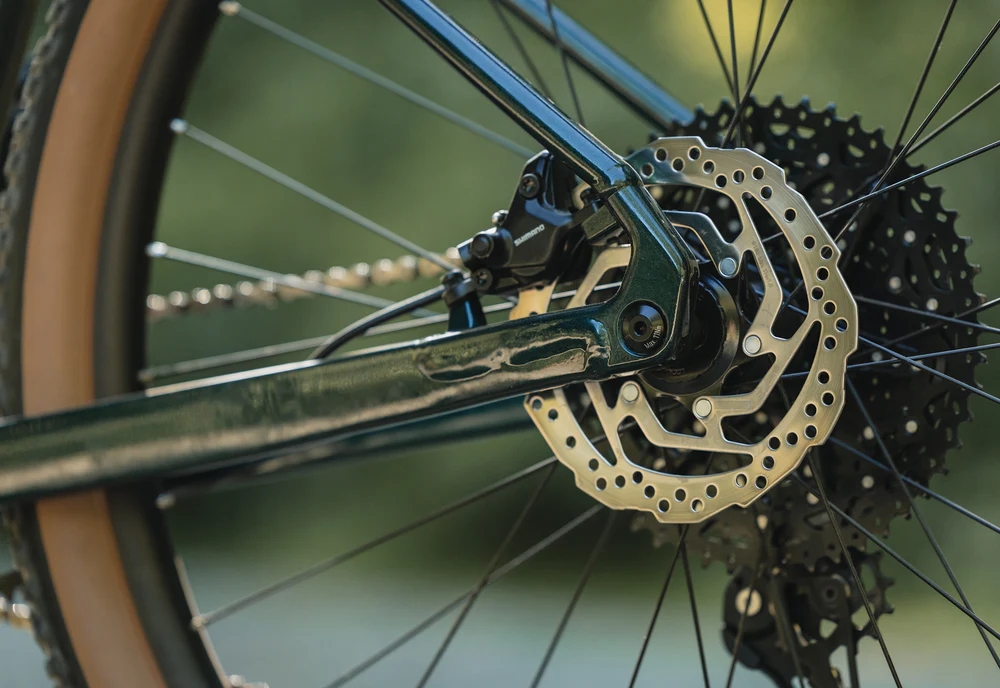

Brakes Rear
Shimano Deore, BR-MT4100, 160mm Rotor

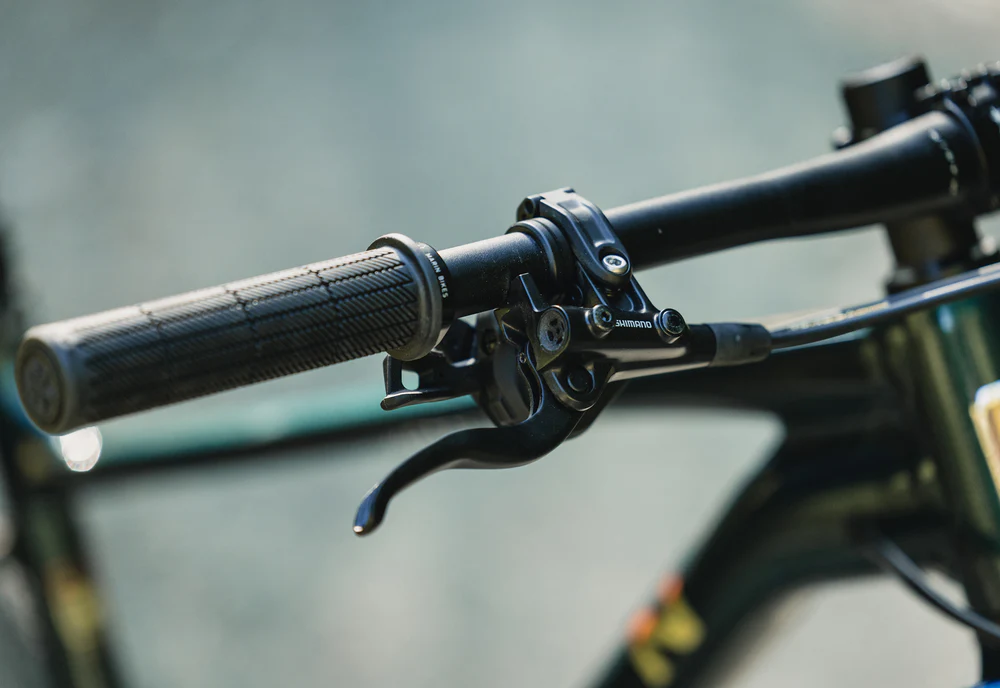

Brake Levers
Shimano BL-MT4100
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Single Clamp Locking
Headset
FSA No 42ACB, 1 1/8″ x 1 1/2”
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm
Saddle
Marin Speed Concept
Pedals
Nylon Platform
