Experience superhuman climbing power with Bosch’s 120 Nm, 600 percent assist Gen 5 CX motor. Cha-ching! Adjustable geometry allows you to personalize your ride and conquer difficult terrain, while 160mm of MultiTrac 2 LT suspension keeps you moving. X-Fusion Vengeance fork and H3 Silky performers are an unexpected surprise. Shimano’s CUES drivetrain shifts under strain, whereas TRP’s DHR EVO Comp brakes confidently substitute question marks. Premium platform, reasonable price. marin bikes
Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
App
Bosch eBike Flow App
Range
115-55 miles/25-90km
Display

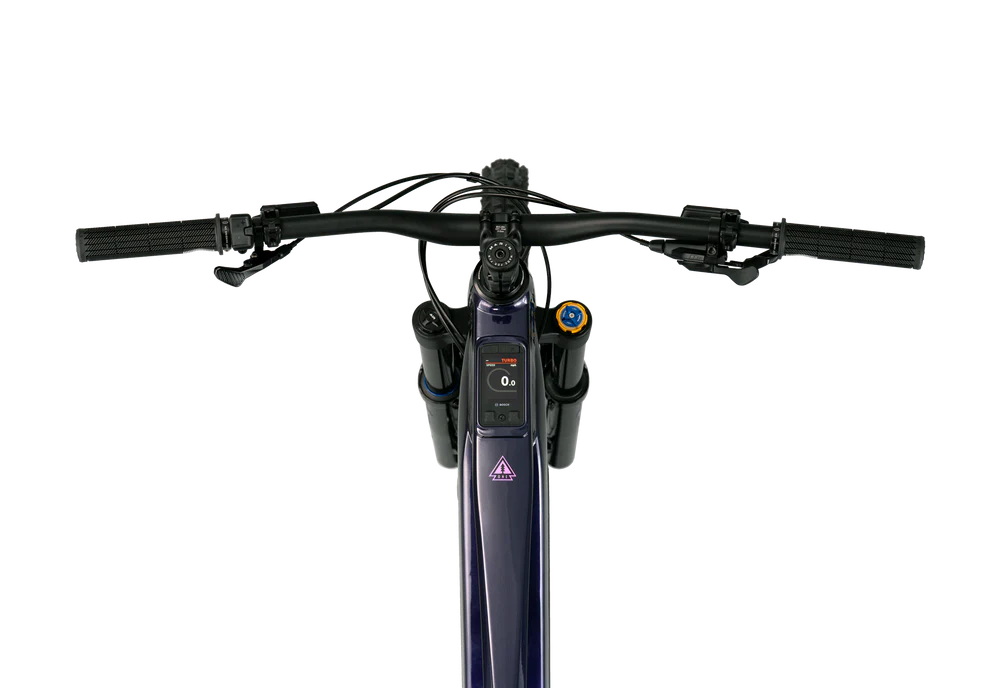

Bosch Kiox 400 Top Tube Display
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
PT800 Horizontal
Frame
All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
Rear Suspension
X-Fusion H3A Air, 205×65, 30xM8 Lower Hardware, Custom Tune
Rim
New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear
Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
Hub Front
Shimano HF-MT500B, 110x15mm, Centerlock
Spokes
14g Black Stainless Steel
Tires
Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29×2.5″ Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5×2.5″
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever
Shimano CUES SL-U6000-10R, 10-Speed
Crankset
Marin Forged eMTB Cranks, 150mm
Chain
Shimano LG500
Cassette
Shimano CS-LG300-10, 11-48T
Brakes Front
TRP DHR EVO Comp, 200mm Rotors
Brakes Rear
TRP DHR EVO Comp, 200mm Rotors
Brake Levers
TRP DHR EVO Comp
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle
Marin Short Nose
